CAworksSite study · duplex stair

Hyde Residences · Dubai Hills · floors 19 → 20

Spine staircase inscribed in the designer's stair area

Opening and levels are read from the Reformer sheet 13 (stair area 2500 × 3300, 500 recess at the landing, FFL19 → FFL20 3500). Amend anything — the stair re-inscribes itself and the Dubai Building Code Part B checks update live.

Schemes

Geometry

Total risers (n)riser C = H ÷ n
Risers to the landing (n₁)lower flight, west side
B — goingnosing to nosing
A — flight clear widthguard face to guard / wall
D — landing depthfrom the south wall
Upper flight off east wall

Find compliant layouts

Every Part B-compliant riser split for the current site values, ranked by how far the lower flight has to run past the stair area on floor 19. Tap one to apply it.

Build-up

Tread thicknessopen-riser gap = C − thickness
Nosing overhang
Spine widthbox section
Spine depth
Riser infill bar

Stair area (both floors)

W — area widthwest edge to east wall
L — area lengthfloor-20 edge to south wall
H — FFL19 to FFL20
S — floor-20 slab + finishscaled from section ≈ 200
Floor 20 to ceilingfor the view only

South end

Recess at the landing
Recess starts at xfrom west edge (drawn 1851)
Recess depth
Landing runs into the recesselse a guard at its edge
Core wall along west side from yshaft block, 100 off the edge

Around the stair

Floor-20 wall ahead of the arrivalfrom the stair-area edge (drawn 1000)
Floor-19 free floor north of the areato the landscaped swing zone ≈ 525
Show walls & slabs
Show floor-20 slab
Show dimensions

Source drawing

Reformer, Hyde residences Dubai Hills, sheet 13 "Staircase" (interior designer Maria Guseva). The designer notes the stair is indicative and that floors 19 and 20 are not built yet — the slab around the stair will be formed to suit its design.

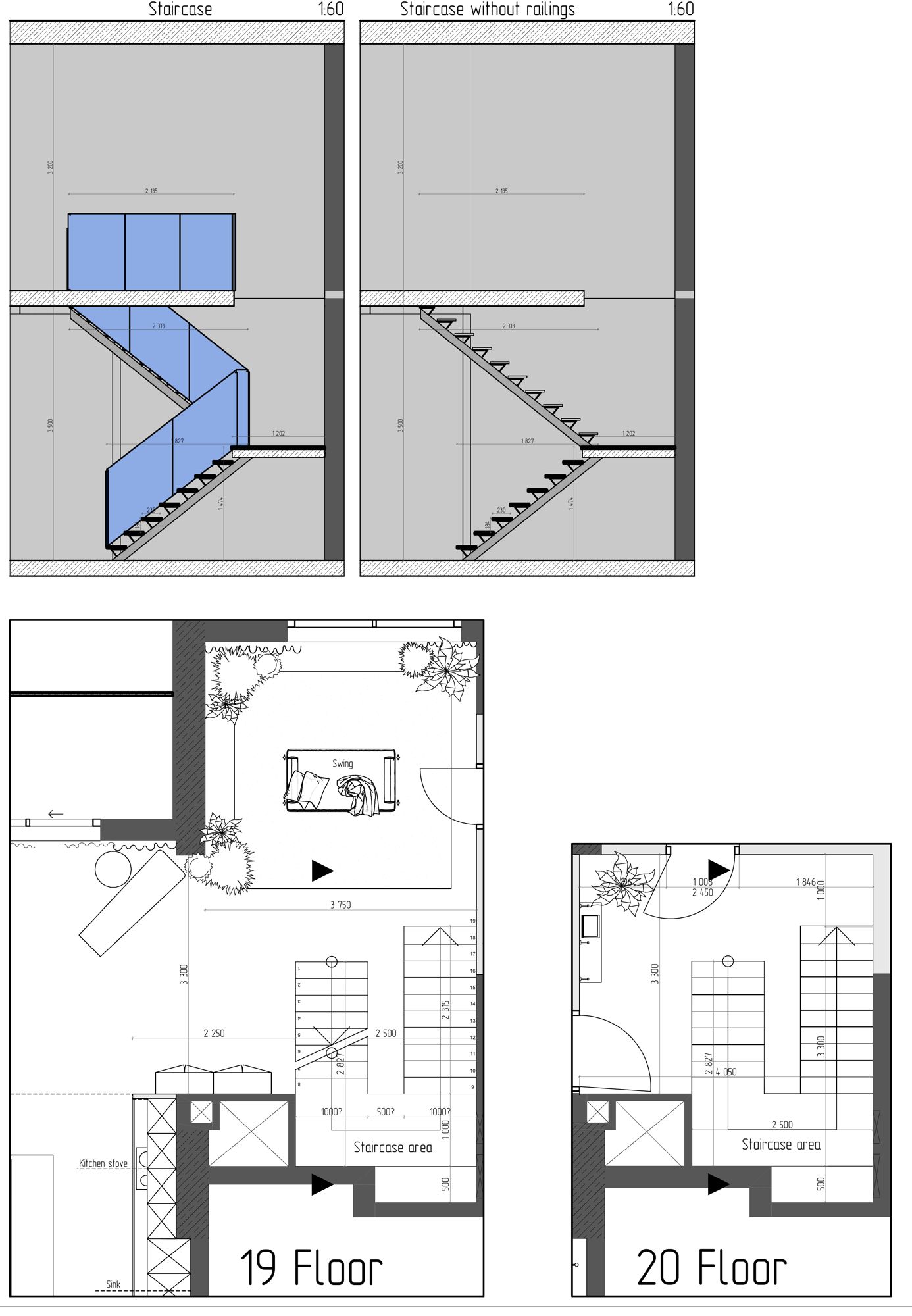

Reformer sheet 13 — staircase plans and sections

Treads & landing

Spine

Guards

Guard heightabove the nosing line
Floor-20 wellhead guard

Handrails

Handrail heighttop of rail above nosing
Handrail Ø
Clearance to glass / wall
End extensionstop and bottom
Second rail for children
Children's rail height

Dubai Building Code 2021 · Part B §B.6.4.1

Dubai Hills is an Emaar community: Dubai Municipality (BPS) permit, Emaar NOC on top, Dubai Civil Defence for fire and life safety. Hyde Residences is an apartment building, so Part B governs — Part K covers only villas of up to three storeys. Values below are read from the model; this is a design aid, not an approval.

Sources

Dubai Building Code 2021 — Dubai Municipality
DBC 2021 full PDF — Part B pages B 43–51
UAE Fire & Life Safety Code, Ch.1 glazing (§2.17.6 glass in railings)
Dubai Universal Design Code §5.8 Steps
CAworks building-code reference

Specification summary

CAworks Designer Glass & Steel Works L.L.C · Al Quoz, Dubai · team@caworks.co · +971 50 636 9524

Drag to orbit · pinch to zoom · two-finger drag to pan.
